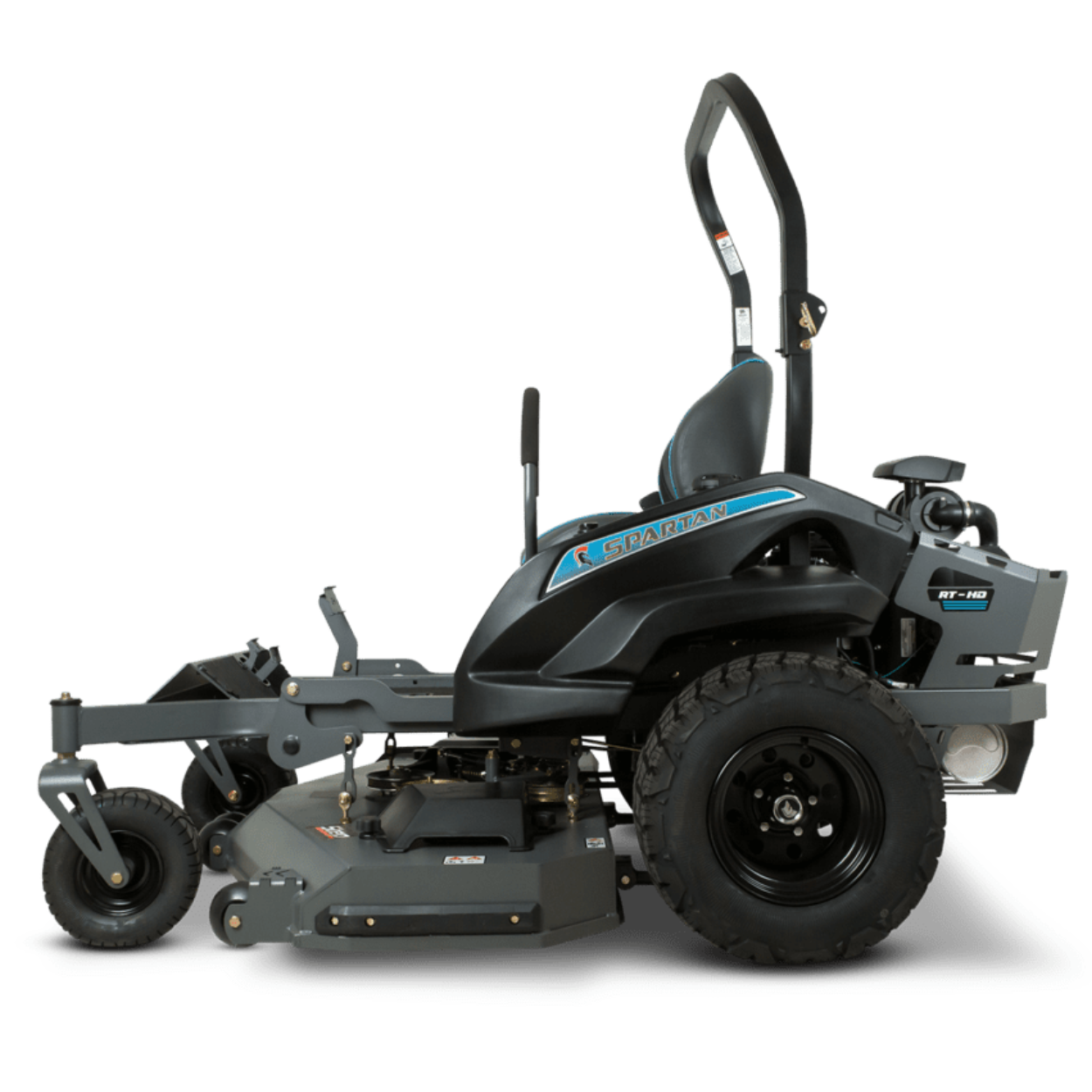

The RTHD 61" EFI is suited for the commercial operator and makes the daily grind easy! This unit is up for a challenge.
The Bushranger RTHD series ZTR’s are a heavy-duty commercial mower that comes ready to tackle properties of all sizes. The Bushranger RTHD series is bursting with premium features that all come standard and makes this ZTR stand out from the competition. From the premium quality Kawasaki FX850V-EFI V-Twin Electronic Fuel Injected engine to the huge long-range fuel tanks and the impressive top speed you will have your job done safely and in comfort in no time at all. It boasts safety features that the competition wish they had like GT Trac for the best traction on inclines, the easy touch brake system or the foot assist easy-lift cutting decks (which feature four bearing per cutting spindle). While for operator comfort while mowing you must try out the ergonomic cockpit with all controls in easy reach and the TBC-3 TecsPak elastomer dampeners with 360 floating seat system. This truly is a premium feature packed, no-nonsense commercial grade mower at an affordable price.
Warranty Information
Domestic Warranty
3 Years / 500 Hours Domestic Warranty (whichever comes first)
Commercial Warranty
2 Years / Unlimited Hours Commercial Warranty
Hire/Rental Warranty
No Hire / Rental Warranty
Miscellaneous
Cutting Height(s)
Change on the go deck height dial with shock-assisted deck foot lift. 1.5” to 5.5” (38.1 mm to 139.7 mm) with 15 adjustable cut heights in between plus travel lock
Blade(s)
(3) Heavy-duty blades
Dimension Specs
Dry Weight
519.2kg (1144.6 lbs)
Height
75" (1905 mm) With ROPS o 54” (1372 mm) Folding ROPS down
Width
62.5" (1587.5 mm) w/discharge chute up
Length
84" (2133.6 mm)
Zero Turn Mower Specs
Ground Speed - Forward
Infinitely variable up to 0-17.7 kph
Brakes
Foot-operated parking brake
Caster Tyres
13”, Radial
Tyres - Drive
24” Turf radials
Seat
TCB-3 TecsPak Elastomer Dampeners with 360 Floating System
Construction
Fabricated 7 Gauge with 7 gauge spindle mounts and 9/16 impact bar
Large Cup holder moulded into the left-side mud guard. Accommodates nearly any cup size
Deck System
Side-Discharge: 61" (1550 mm) cut. (3) Blades, deck is suspended at two points at the rear and two in front. Includes deck-mounted anti-scalp wheel(s) to improve flotation in rolling and uneven terrain
Deck Lift
Foot-operated with shock assist
Deck Construction
Fabricated 7 Gauge with 7 gauge spindle mounts and 9/16 impact bar
Blade Tip Speed
18,749 fpm / 5,714.69 mpm
Blade Drive
V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life
Spindles
7 Gauge
Hydrostatic Drive
V-belt drive from engine crankshaft
Discharge Chute
High density, rubberised
Open Deck
Grass clears deck and discharge chute more easily due to the design (No restricting bar on the discharge side)
Engine and Fuel Specs
Engine
Kawasaki FX850V-EFI premium and commercial grade V-Twin engine
Type
Air cooled, 90-degree V-twin, electronic fuel injected petrol engine
Horsepower
29.5 hp (22.0 kW) @ 3600 rpm (Please Note: Horsepower rating as tested to SAE J1995 Standards.)
Cooling
Air cooled. Flywheel fan
Fuel
Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)
Fuel Filter
Replaceable, automotive-type
Oil Filter
Spin-on engine oil filter / Total oil capacity 2.5 U.S. qt. (2.4 litres) with filter
Air Filter
Heavy-duty, canister style air cleaner to extend the service interval for excessive, dirty applications and improved performance
