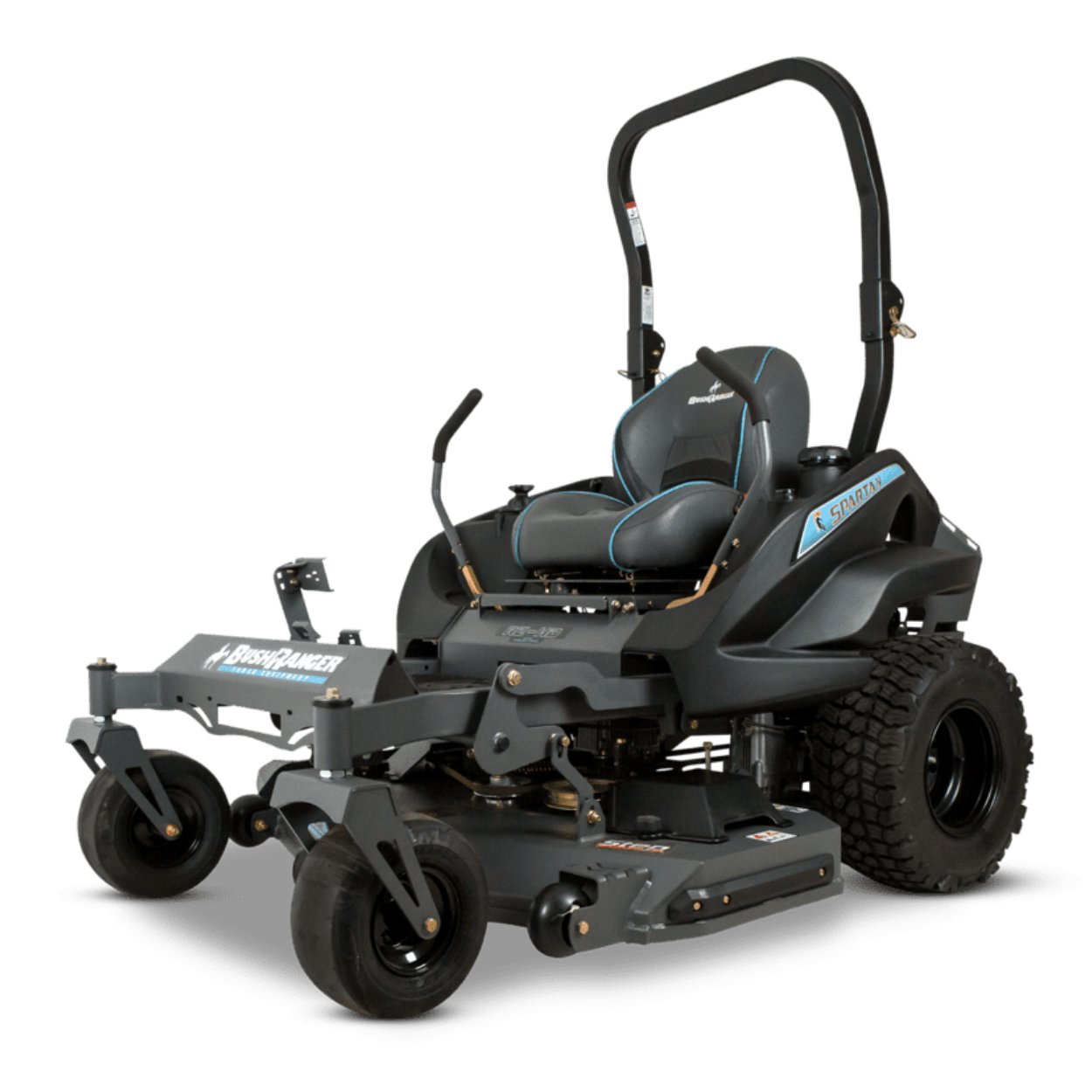

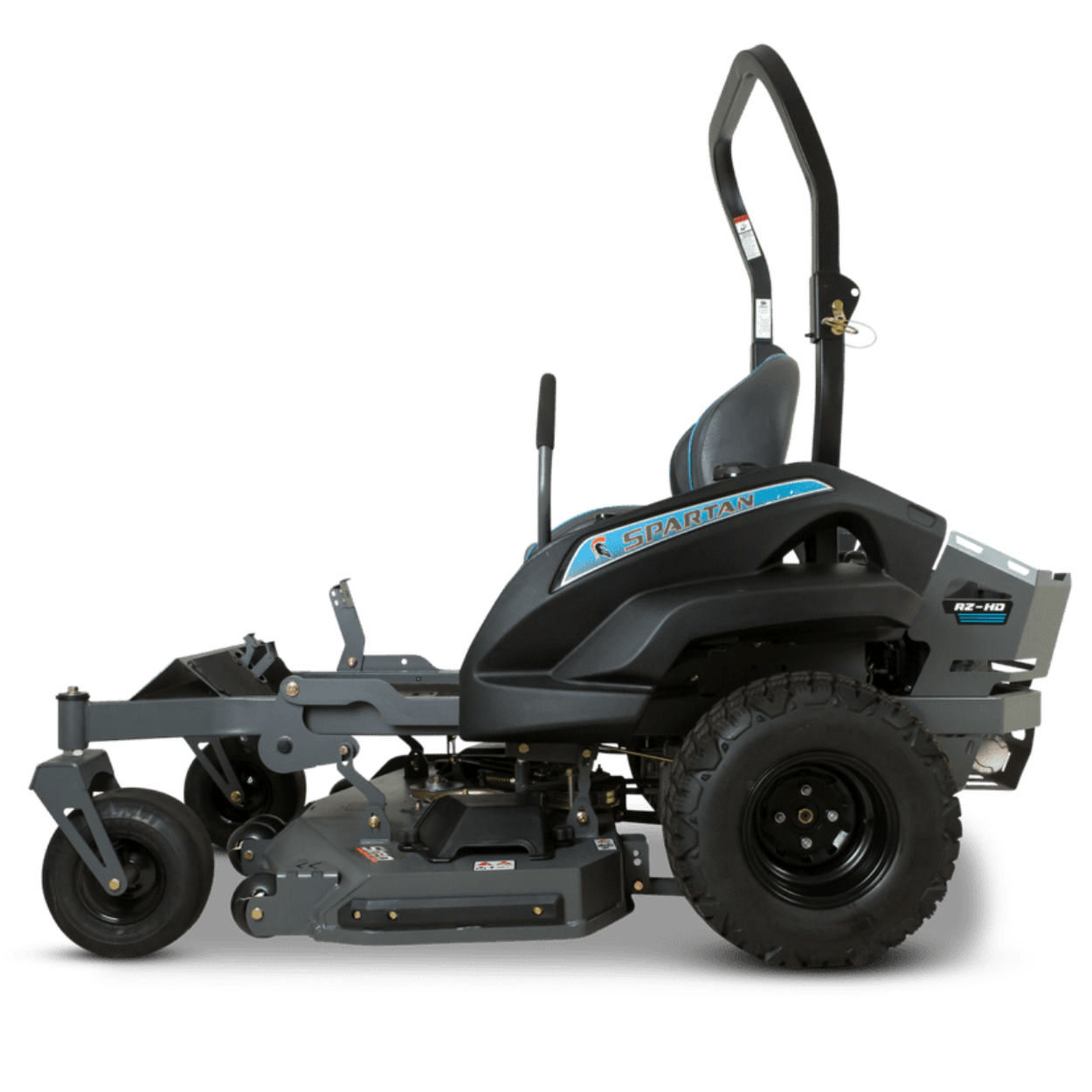

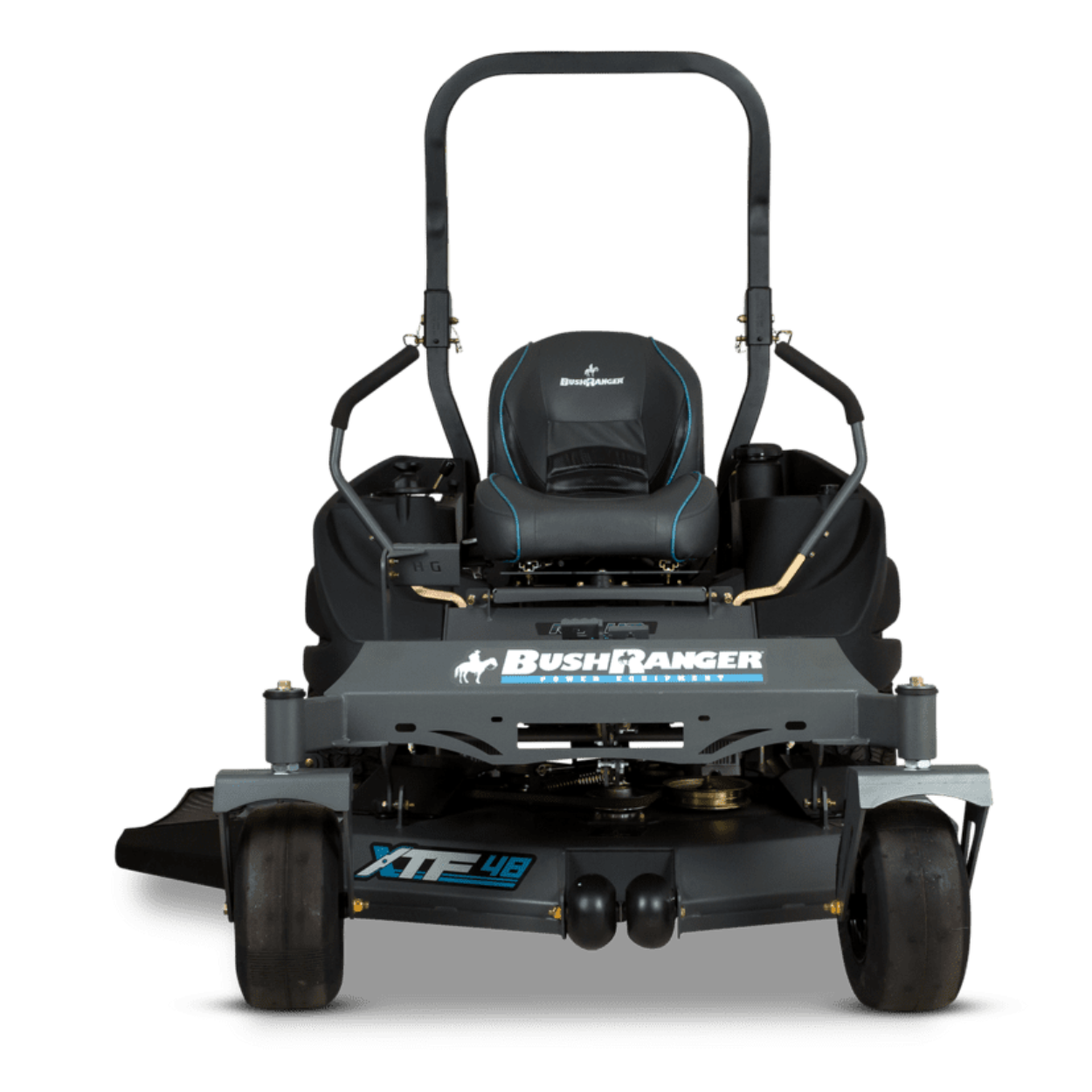

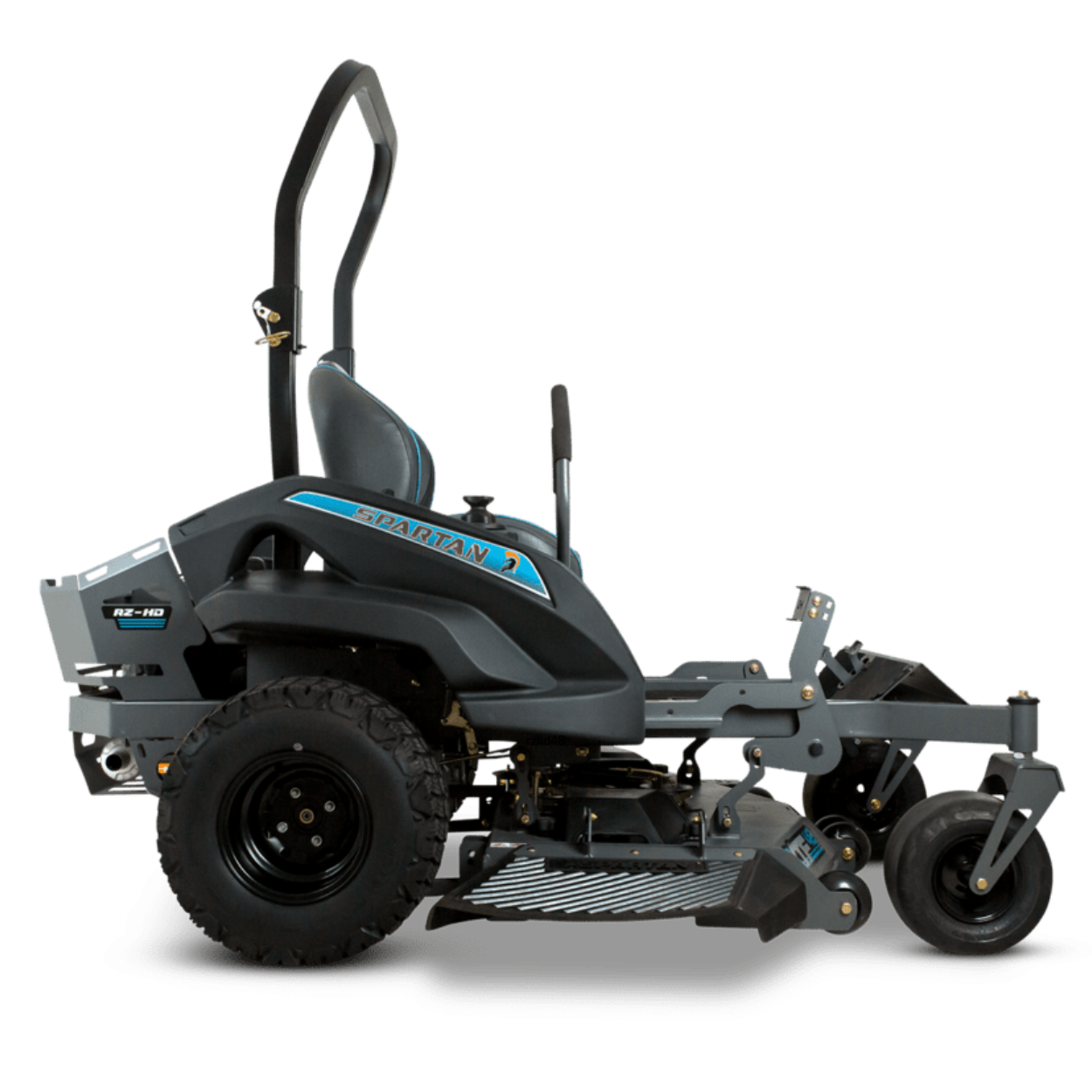

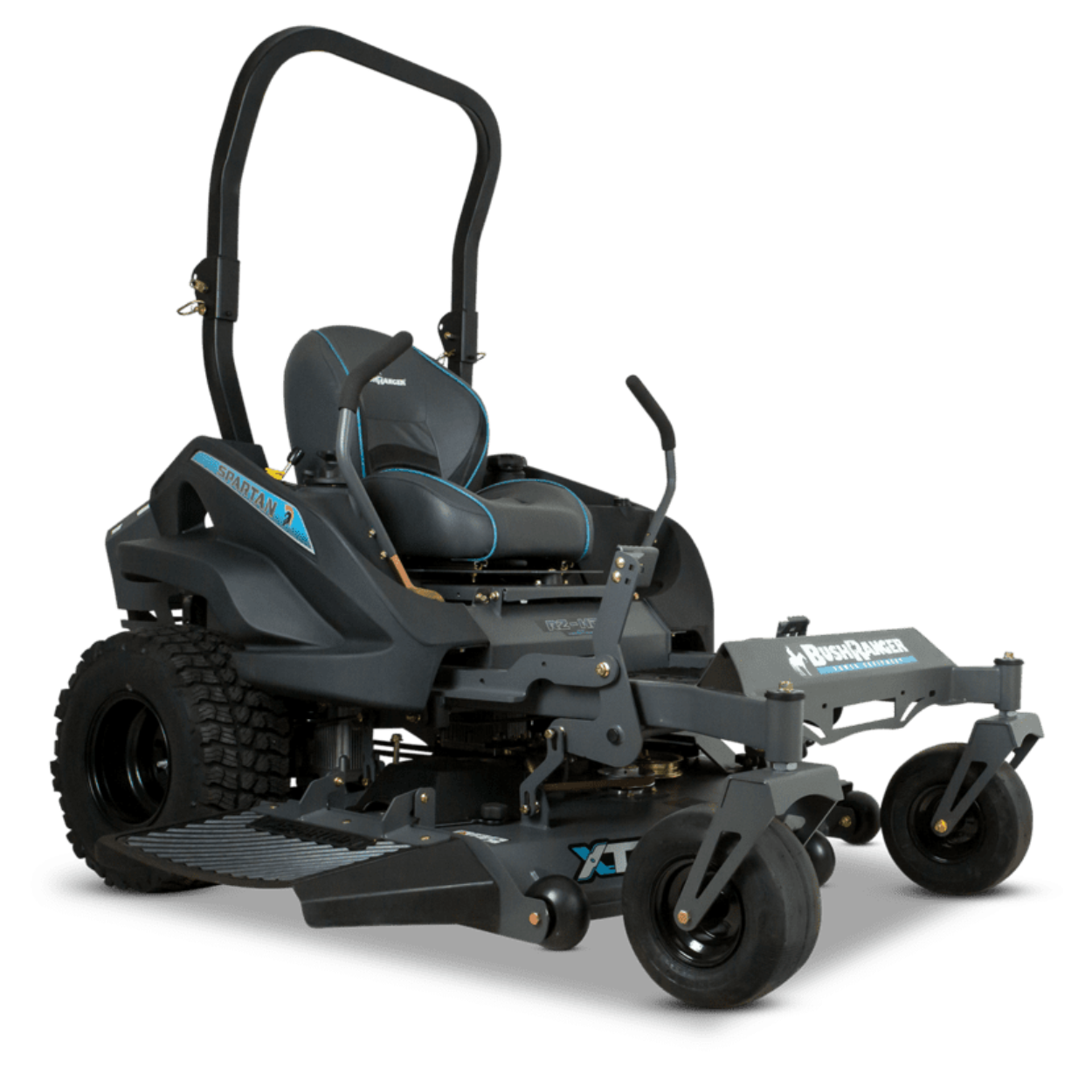

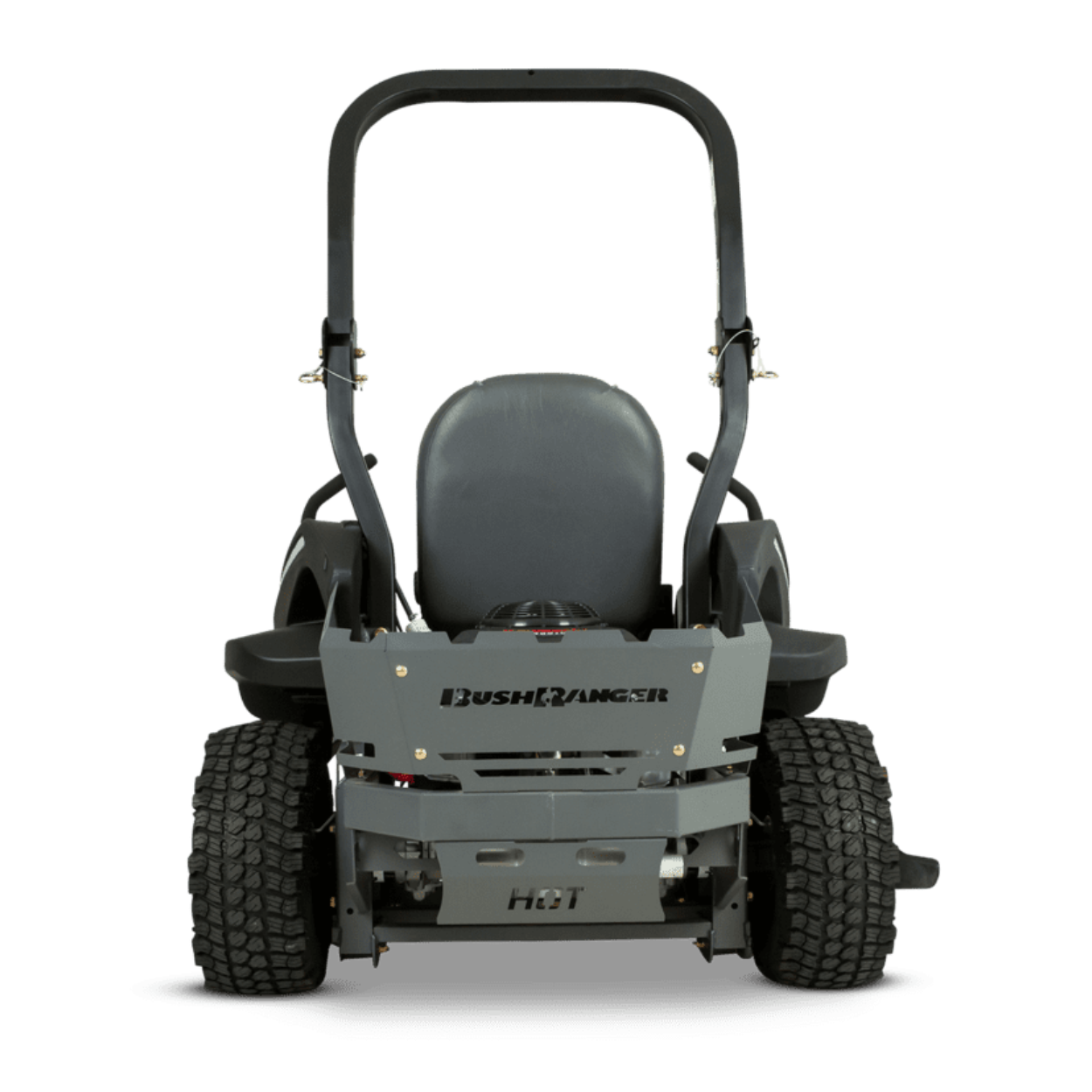

RZHD-48 Zero Turn
RZHD-48 Zero Turn
No reviews
Regular price
$15,799.00
Regular price
$16,799.00
Sale price
$15,799.00
Unit price
/
per
In stock
Couldn't load pickup availability
The RZHD 48" is perfect for small-mid size acreage, but don't be fooled this unit handles the tough jobs too.
The Bushranger Spartan RZHD range offers 3 cutting deck sizes giving you the flexibility to choose exactly which mower suits your needs. The RZHD 48" range is backed by a powerful Kawasaki V-Twin engine, giving you the power where and when you need it. This unit won’t disappoint.
Warranty Information
Domestic Warranty
3 Years / 400 Hours Domestic Warranty (whichever comes first)
Commercial Warranty
3 Years / 400 Hours Commercial Warranty (whichever comes first)
Hire/Rental Warranty
No Hire / Rental Warranty
Miscellaneous
Cutting Height(s)
Change on the go deck height dial with shock-assisted deck foot lift. 1” to 4.25” (25.4 mm to 107.95 mm) with 15 adjustable cut heights in between plus travel lock
Blade(s)
(3) Heavy-duty blades
Dimension Specs
Dry Weight
418.2 kg (922 lbs)
Height
75" (1905 mm) with ROPS up, 54” (1372mm) folding ROPS down
Width
49.5" (1257.3 mm) w/discharge chute up
Length
84" (2133.6 mm)
Zero Turn Mower Specs
Ground Speed - Forward
Infinitely variable up to 0-14.48 kph
Brakes
Foot-operated parking brake
Caster Tyres
13”, smooth tread
Tyres - Drive
22” Turf radials
Seat
RZ HD seat
Construction
Heavy-duty fabricated steel, 5” deep, full floating deck
Hour Meter
Standard
Controls
Hand-operated choke, throttle, push button key, electric mower clutch, foot pedal parking brake
Deck System
Side-Discharge: 48" (1220 mm) cut. (3) Blades, deck is suspended at two points at the rear and two in front. Includes deck-mounted anti-scalp wheel(s) to improve flotation in rolling and uneven terrain
Deck Lift
Foot-operated with shock assist
Deck Construction
Heavy-duty fabricated steel, 5” deep, full floating deck
Blade Tip Speed
18,913 fpm / 5,764.68 mpm
Blade Drive
V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life
Spindles
7 Gauge
Hydrostatic Drive
V-belt drive from engine crankshaft
Discharge Chute
High density, rubberised
Open Deck
Grass clears deck and discharge chute more easily due to the design (No restricting bar on the discharge side)
Engine and Fuel Specs
Engine
Kawasaki FR691V
Type
Air cooled, 90-degree V-Twin, normally aspirated petrol engine
Horsepower
23.0 hp (17.2 kW) @ 3600 rpm (Please Note: Horsepower rating as tested to SAE J1995 Standards)
Cooling
Air cooled. Flywheel Fan
Fuel
Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)
Fuel Filter
Replaceable, automotive-type
Oil Filter
Spin-on engine oil filter / Total oil capacity 2.1 litres with filter
Air Filter
Cartridge air filter
Fuel Capacity
18.9 Litres
Governor
Mechanical
Mowing Deck Specs
Cutting Widths
48" (1220 mm) cut side discharge
Hydrostatic Drive System Specs
Drive System
Parker HTE 10cc wheel motors
