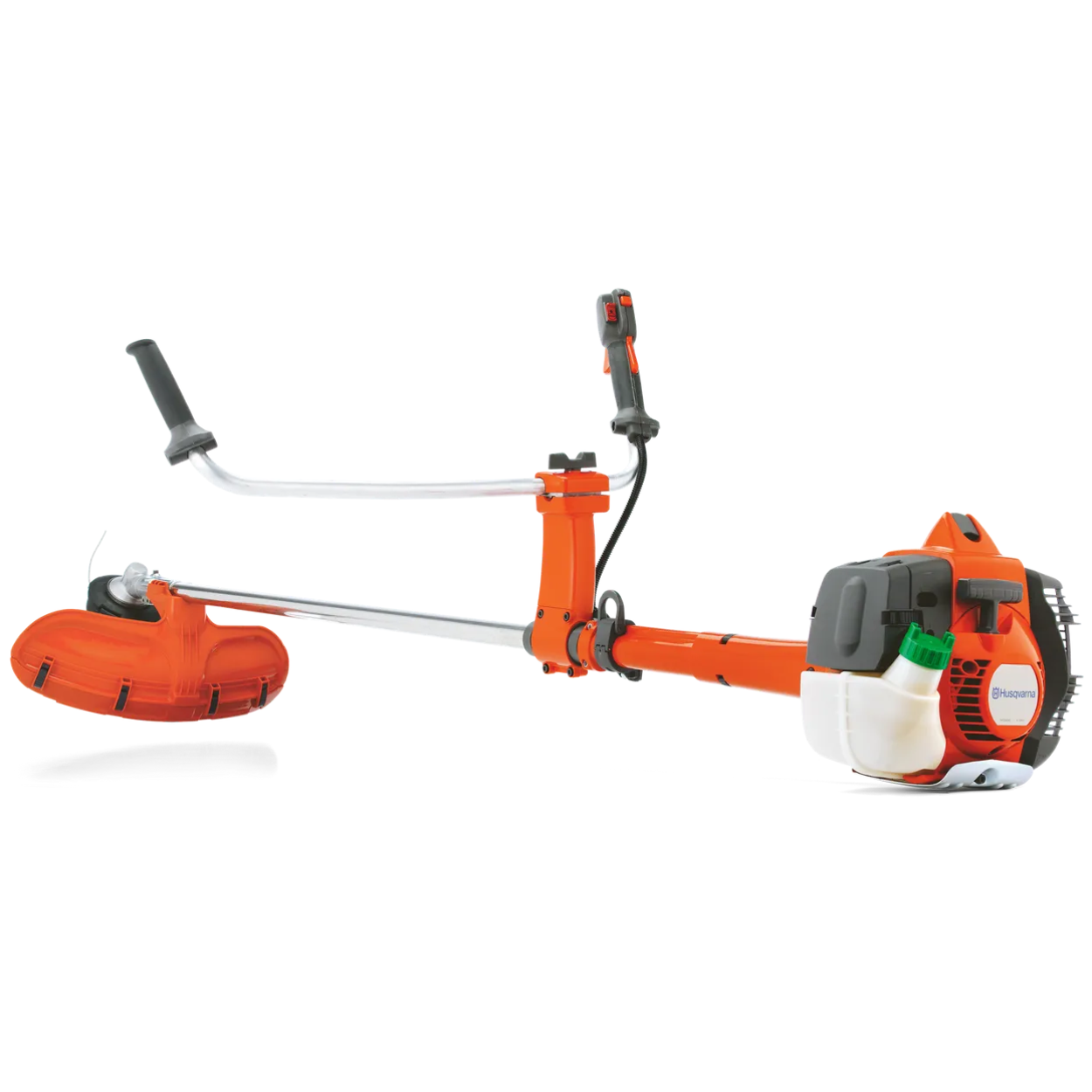

535RXT Brushcutter

The Husqvarna 535RXT is a new petrol powered professional brush cutter in the versatile 35 cc class, built for tough commercial use. Top class performance is provided through raw power, unique ergonomics and excellent durability. The machine is equipped with a comfort package including LowVib® and comfort grip handles.

Engine	T35 + Multi 300-3 (1"), All ex US50 Art no: 966 62 89‑02
Cylinder displacement	34.6 cm³
Output shaft power1	1.4 kW
Fuel tank volume	0.6 l
Fuel consumption	475 g/kWh
Maximum power speed	8,400 rpm
Idling speed	2,900 rpm
Maximum rpm output shaft	8,220 rpm
Electrode gap	0.5 mm
Clutch engagement speed (±120)	3,600 rpm
Torque, max.	1.9 Nm
Torque, max. at rpm	6,600 rpm
Spark Plug	Champion RCJ6Y
Equipment
Grass blade	Multi 300-3
Harness	Balance X
Trimmer head	T35 M12
Capacity
Cutting width	47 cm
Transmission
Gear ratio	1.4
Drive gear angle	35 °
Dimensions
Tube diameter	28 mm
Weight (excl. cutting equipment)	6.7 kg
Tube length	1,483 mm
Lubricant
Lubricant type (Engine)	Husqvarna 2 stroke or equiv. at 50:1
Lubricant type (bevel gear)	Mineral grease
Sound and noise
Sound pressure level at operators ear	96 dB(A)
Sound power level, guaranteed (LWA)	114 dB(A)
Emission
Exhaust emissions (HC average) EU	40.51 g/kWh
Exhaust emissions (HC average) CARB	29.31 g/kWh
Exhaust emissions (CO average) EU	418.31 g/kWh
Exhaust emissions (CO average) EPA	243.69 g/kWh
Exhaust emissions (NOx average) EU	0.46 g/kWh
Exhaust emissions (NOx average) EPA	1.09 g/kWh
Exhaust emissions (CO₂ EU V)2	862 g/kWh
Vibration
Equivalent vibration level (ahv, eq) left handle	2.4 m/s²
Equivalent vibration level (ahv, eq) right handle	3.1 m/s²
