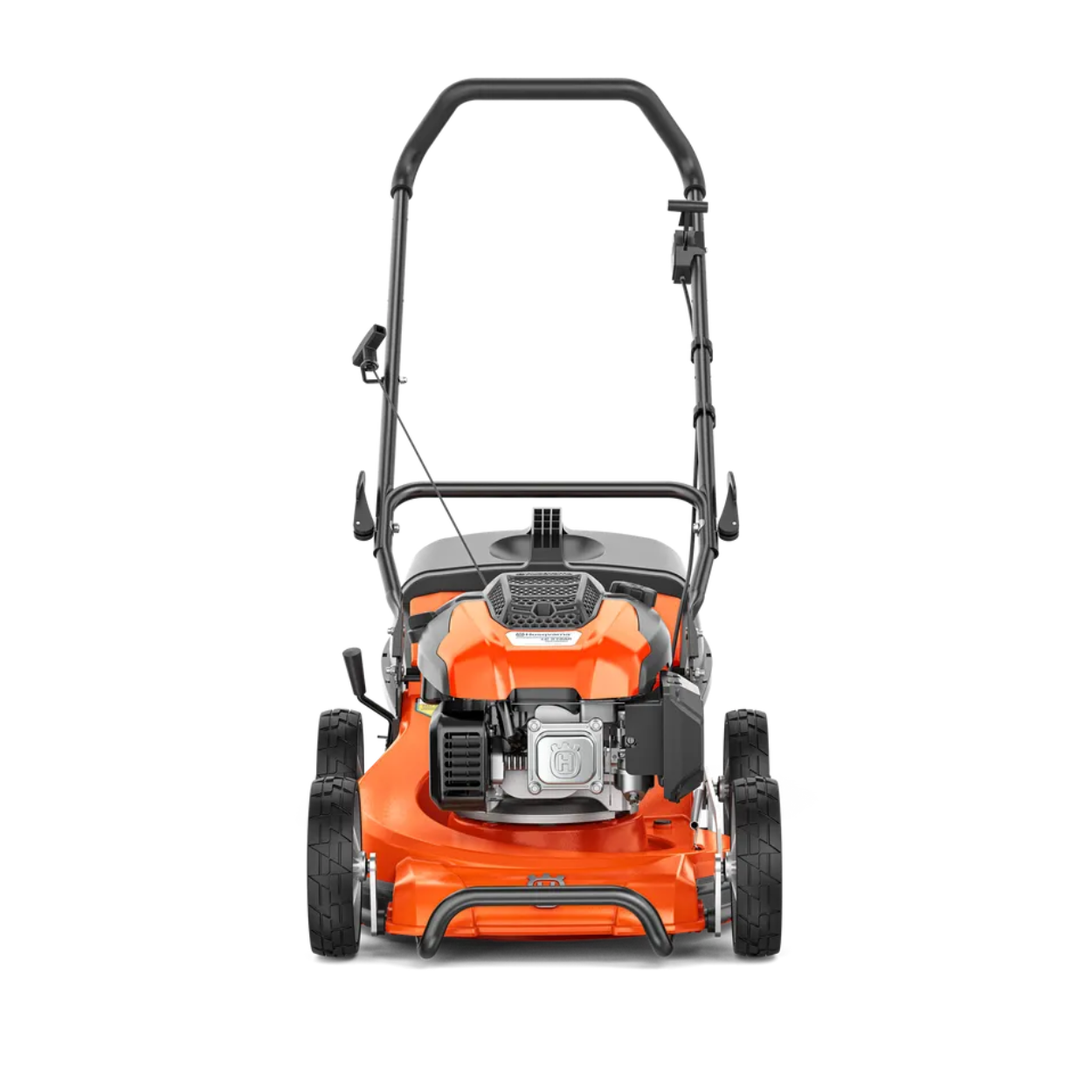

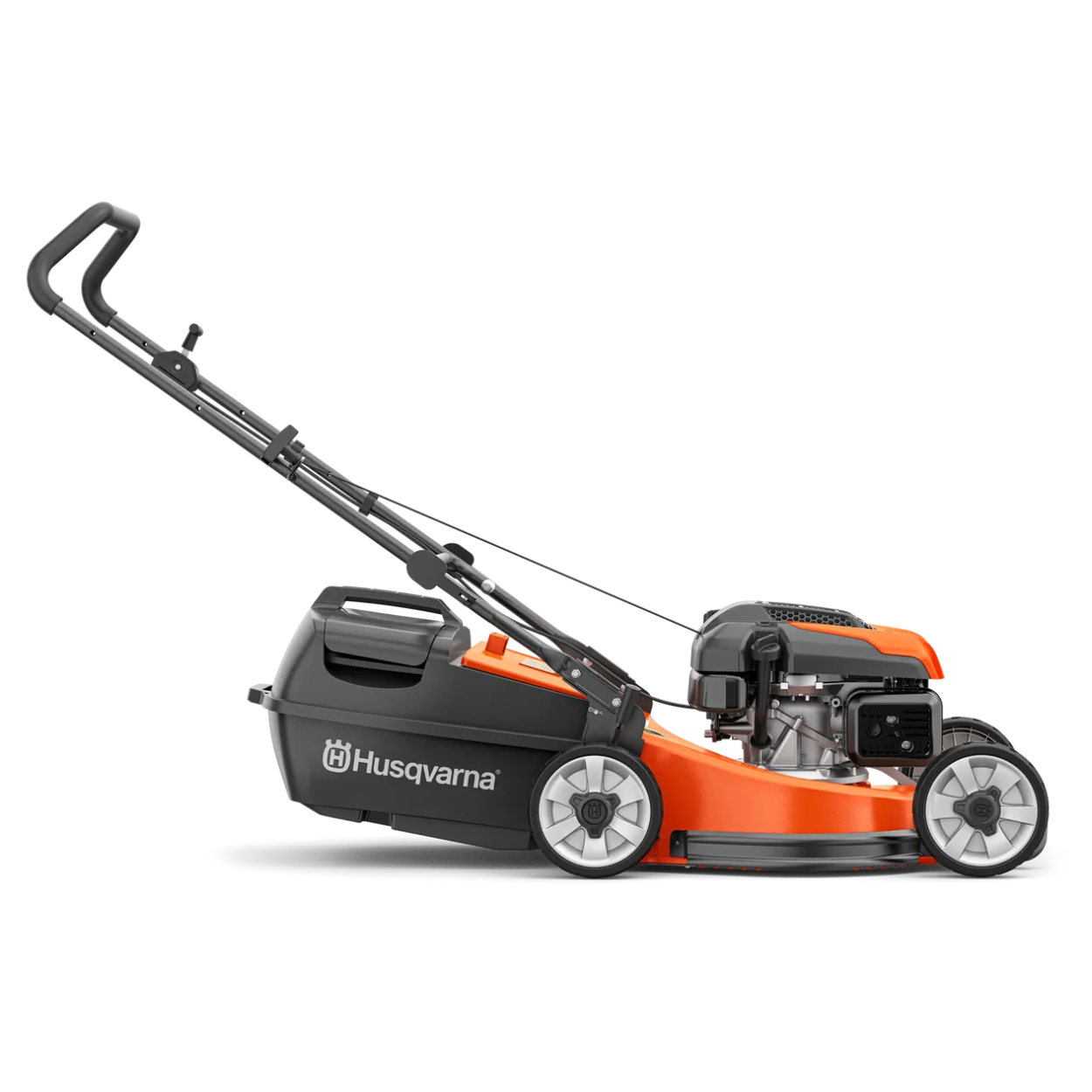

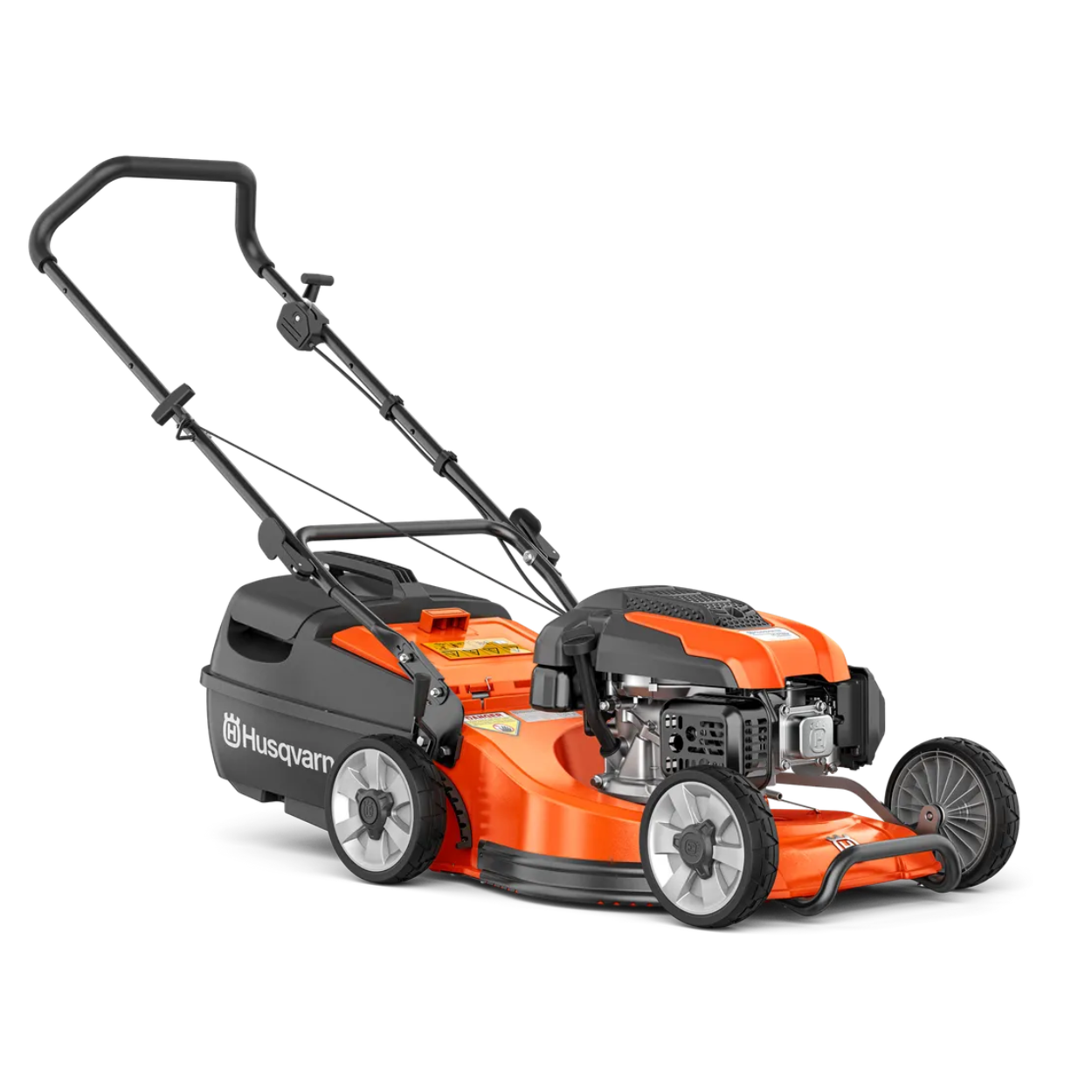

LC519AP Push Mower

A commercial lawn mower with a large 48cm (19”) pressed steel cutting deck and large hard collector. Equipped with the fully commercial and high-specified four-stroke engine Husqvarna HS 166AP. Features include dual ball bearing wheels, comfort grip folding handle with quick action cam locks and eight cutting heights. Comes complete with mulch insert.

Engine	LC 519AP LAWN MOWER Art no: 970 60 92‑01
Net power at preset rpm Energy1	2.75 kW
Net power at preset rpm	2,900 rpm
Engine brand	Husqvarna
Engine name	HS 166AP
Cylinder displacement	166 cm³
Engine lubrication type	Splash
Engine cooling	Air
Emission
Exhaust emissions (CO₂ EU V)2	922.38 g/kWh
Material
Cutting deck material	Aluminium
Rims, material	Plastic
Cutting deck
Cutting methods	Collection/BioClip®
Cutting width	48 cm
BioClip® kit	Not available as accessory (NOT AVAILABLE)
BioClip® plug	Included
Cutting height steps	10
Cutting height adjustment	Central
Cutting height max	80 mm
Cutting height min	16 mm
Drive system
Drive system	Push
Drive wheels	N/A
Speed forward max	0 km/h
Speed forward min	0 km/h
Equipment
Collector type	Rigid box
Collector volume	44 l
Handle type	Up-turned
Handle height adjustment	None
Wheel bearing, front/rear	Yes/Yes
Foldable handle	Yes
Soft grip	Yes
Side adjustable handle	No
Throttle control	Yes
Water hose connection	No
Blade brake clutch (BBC)	No
Dimensions
Wheel size, Front	210 mm
Wheel size, Rear	210 mm
Weight (complete product w/o side packed articles)	29.5 kg
Wheelbase	55 cm
Sound and noise
Sound pressure level at operators ear	83 dB(A)
Sound power level, measured	94 dB(A)
Sound power level, guaranteed (LWA)	96 dB(A)
Vibration
Vibrations handlebar	9.9 m/s²
