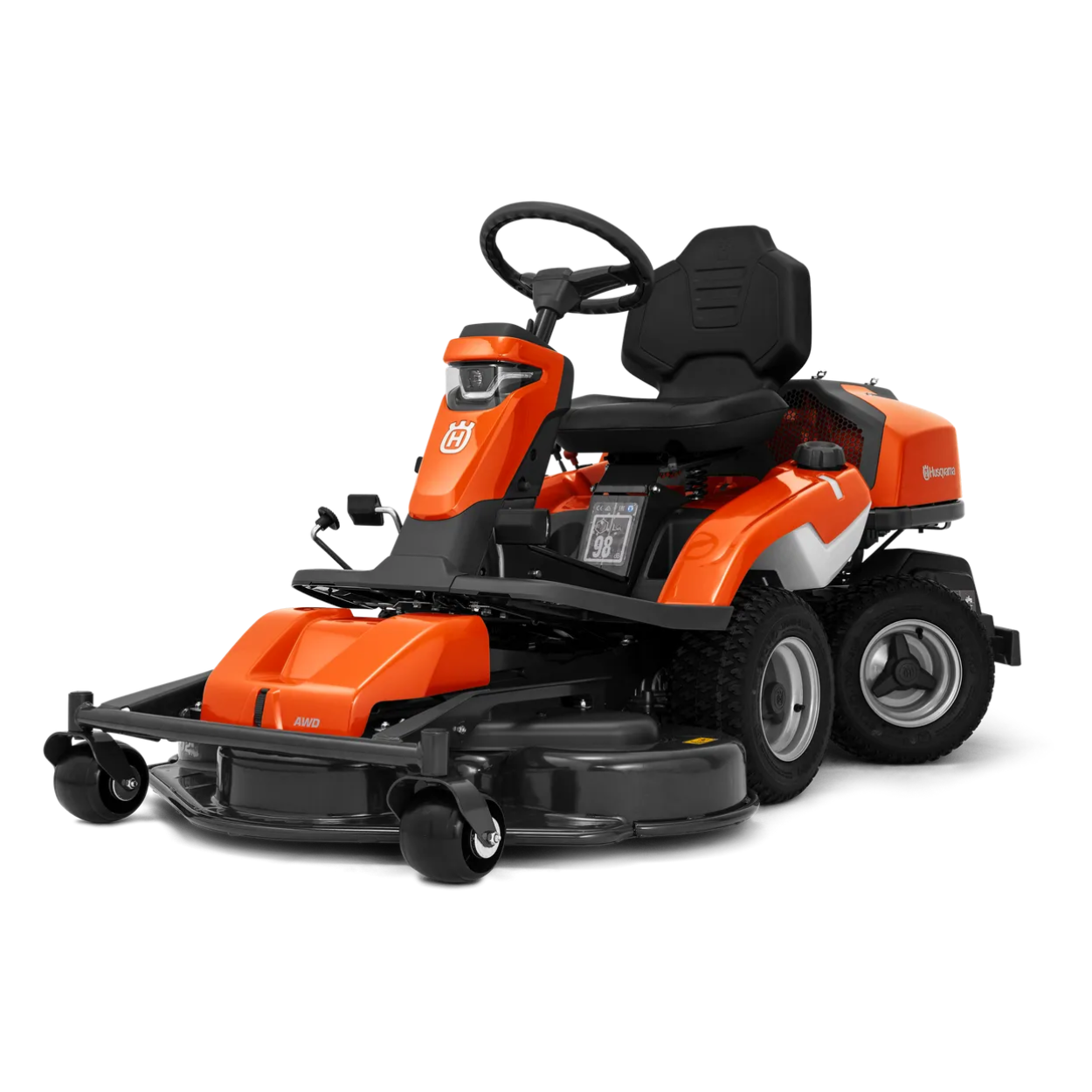

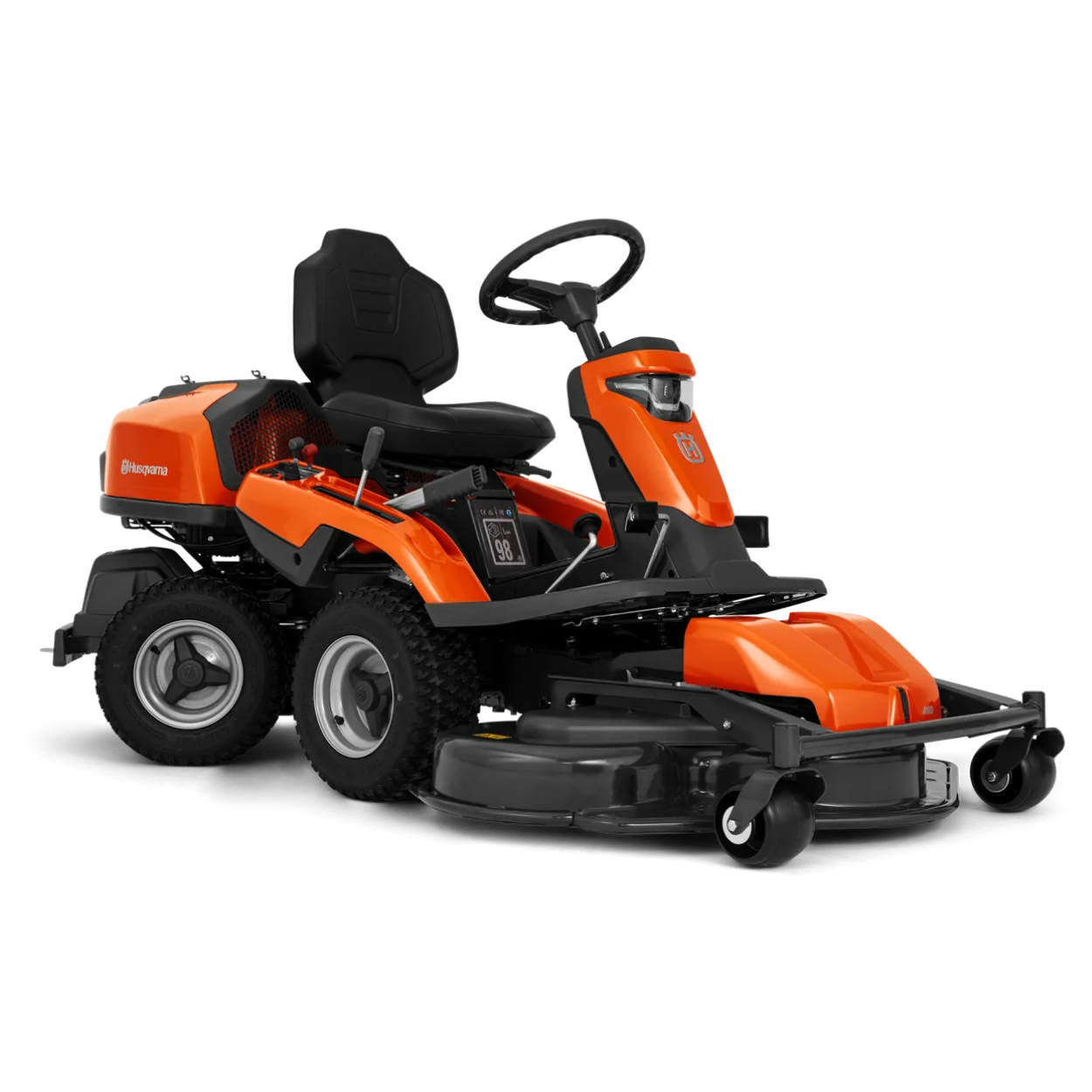

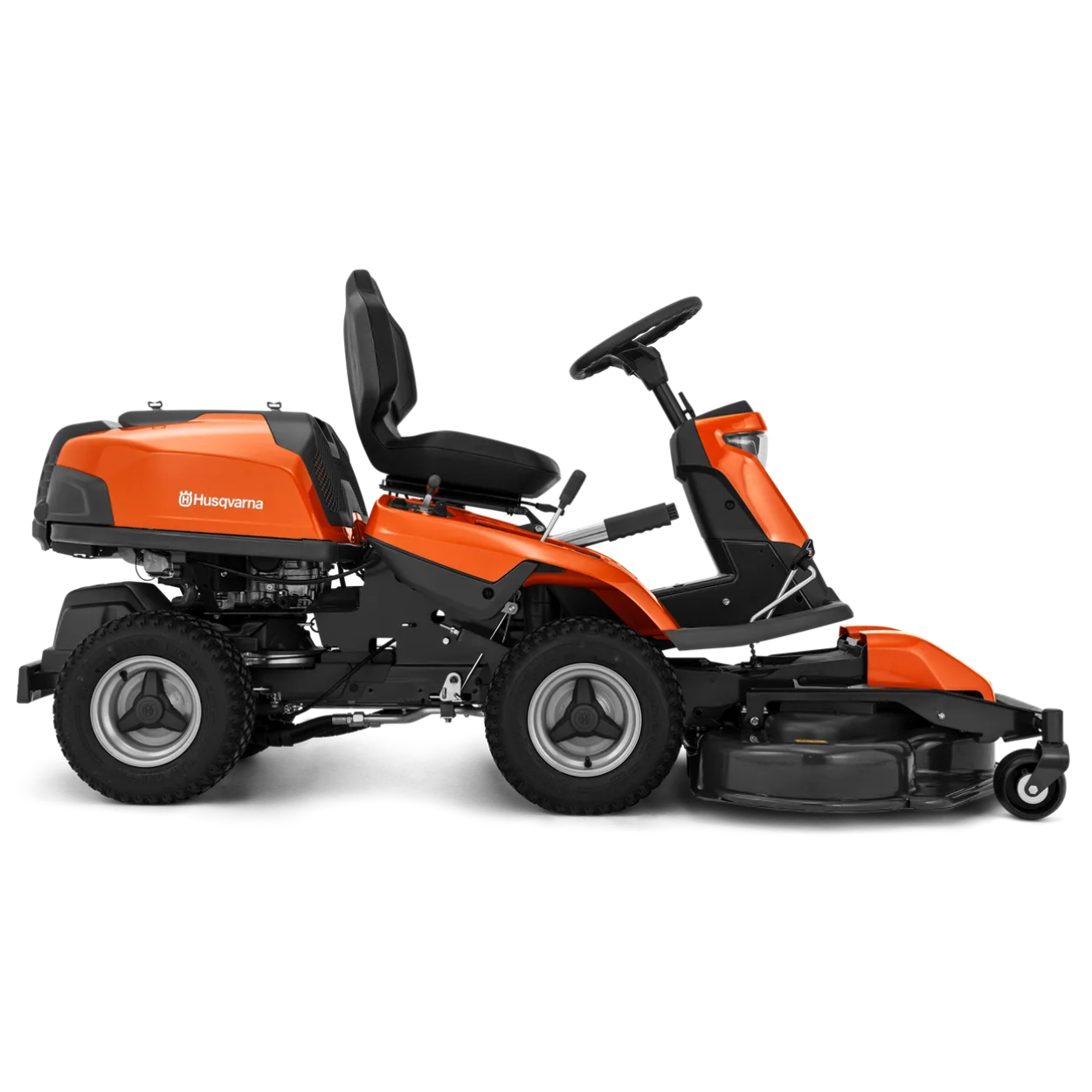

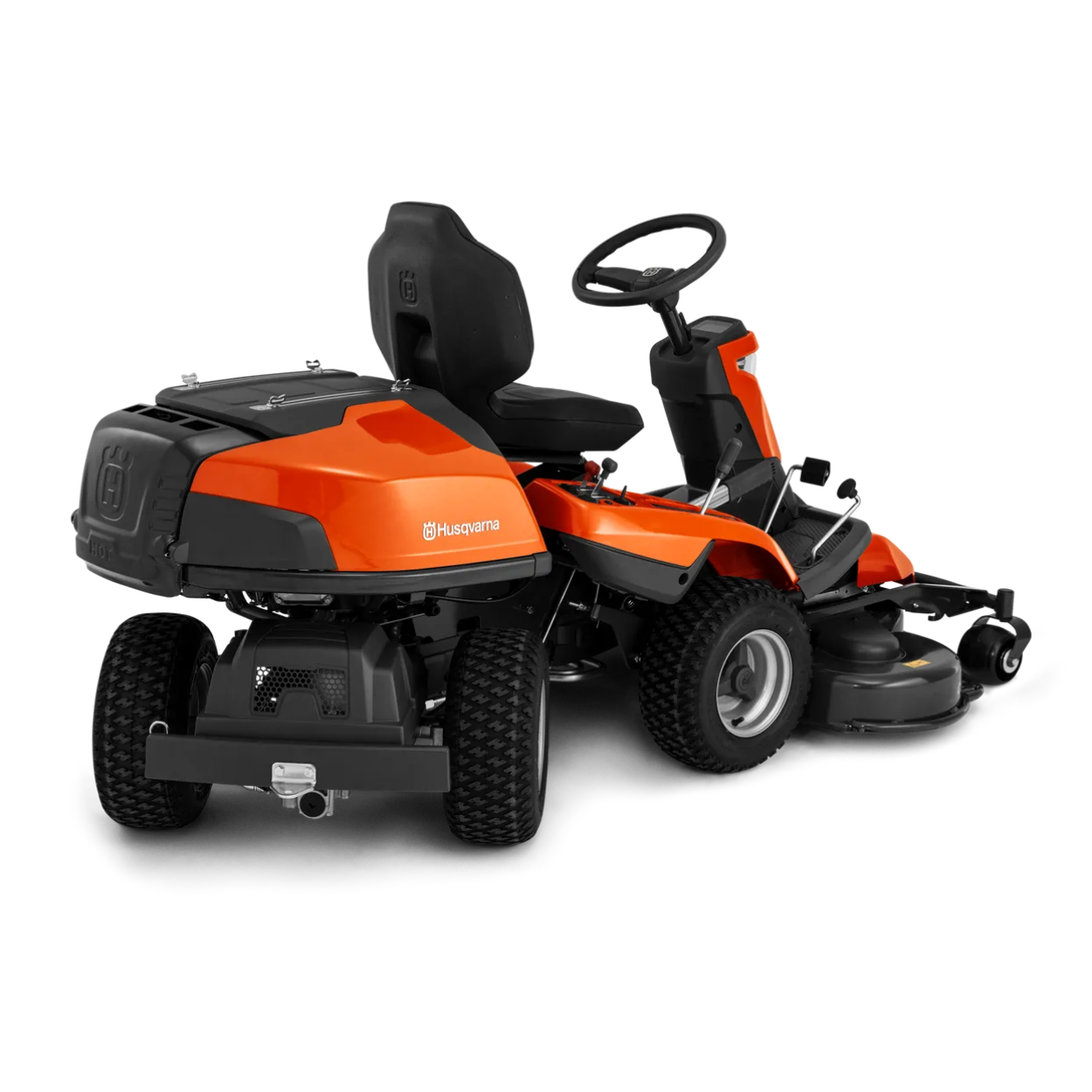

R316TX Ride-on Front Mower (CC103 Deck)

R316TX Ride-on Front Mower (CC103 Deck)

Regular price $11,499.00
Regular price Sale price $11,499.00
Sale Sold out

Powerful Rider for challenging lawns

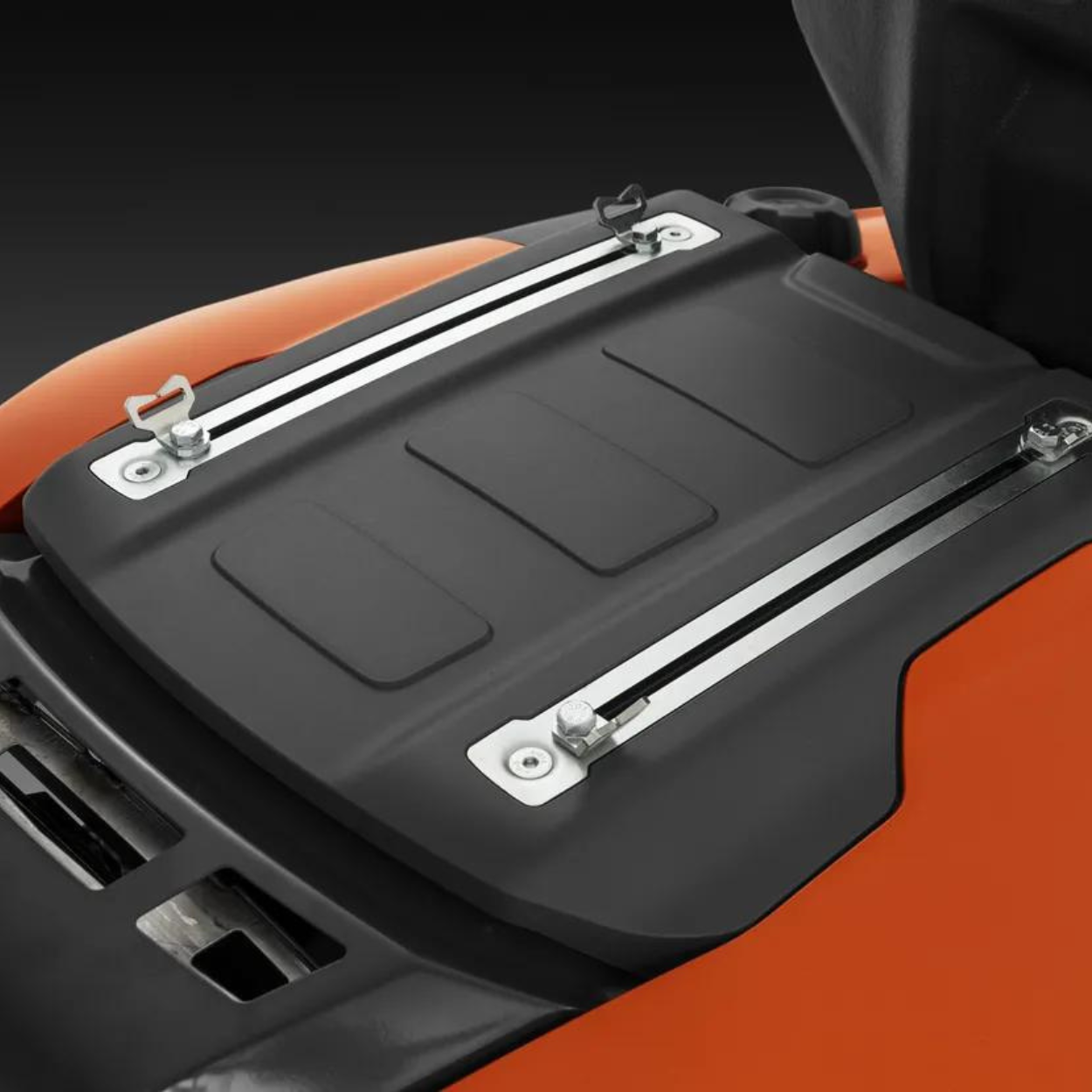

When taking on challenging lawns, you need a high-performing ride-on lawn mower with a wide range of accessories available. Husqvarna Rider R 316TX comes with a powerful V-twin engine and offers a choice of combi cutting decks for optional BioClip® (mulching) or rear ejection. The articulated steering makes tight turns smooth, while the LED headlights provide greater visibility. Integrated rails on the engine hood make it easy to attach accessories like cargo holder. Ready for Husqvarna Connect with Bluetooth®.
Engine
TEMP BUNDLE EXCEPTION AU/NZ ONLY- Bundle contains of: 970542901 (R316TX Rider), 967152401 COMBI 103 CUTTING DECK)
Art no: 970 54 27‑10
R316TX RIDER
Art no: 970 54 27‑01
Power/fuel type Petrol Petrol
Net power at preset rpm Energy1
9.6 kW 9.6 kW
Net power at preset rpm 2,900 rpm 2,900 rpm
Motor/engine manufacturer Kawasaki Kawasaki
Engine name FS481V FS Series V-Twin
Cylinder displacement 603 cm³ 603 cm³
Cylinders 2 2
Engine cooling Air Air
Engine lubrication type Full pressure Full pressure
Oil filter Yes Yes
Emission
Exhaust emissions (CO₂ EU V)2
851 g/kWh 851 g/kWh
Battery
Battery capacity 24 Ah 24 Ah
Battery type Lead-Acid Lead-Acid
Battery pack weight 7.2 kg 7 kg
Battery manufacturer Global Global
Cutting deck
Uncut circle 30 cm 30 cm
Cutting width, min 94 cm 94 cm
Cutting width, max 112 cm 112 cm
Cutting height min 25 mm 25 mm
Cutting height max 75 mm 75 mm
Blade engagement Automatic Automatic
Dimensions
Tyre dimensions, front 170/60-8 170/60-8
Tyre dimensions, rear 170/60-8 170/60-8
Wheelbase 88.7 cm 88.7 cm
Ground clearance 120 mm 120 mm
Base machine, length 204.4 cm 202.4 cm
Base machine, width 88.3 cm 88.3 cm
Base machine, height 118.1 cm 115 cm
Gross weight towed3
125 kg 125 kg
Weight (excl. cutting equipment) 240 kg 240 kg
Drive system
PTO (Power Take Off) Belt Drive Belt-driven
Transmission type Hydrostatic Hydrostatic
Drive method Dual pedal-operation Dual pedal-operation
Speed forward max 9 km/h 9 km/h
Speed reverse max 5 mph 5.6 mph
Speed reverse max 8 km/h 9 km/h
Equipment
Seat suspension Yes Yes
Seat type Premium Premium
Hour meter type Digital Digital with pre-programmed service intervals
Seat material Vinyl Vinyl
Seat back height High High
Foldable seat Yes Yes
Steering wheel type Ergonomic - soft grip Comfort
Parking brake, type Disc Disc
Vibration
Vibration level steering wheel 2.5 m/s² 2.5 m/s²
Vibration level seat 0.7 m/s² 0.7 m/s²
Sound and noise
Sound pressure level at operators ear 86 dB(A) 83 dB(A)
Sound power level, guaranteed (LWA) 98 dB(A) 98 dB(A)
Sound power level, measured 97 dB(A) 97 dB(A)
