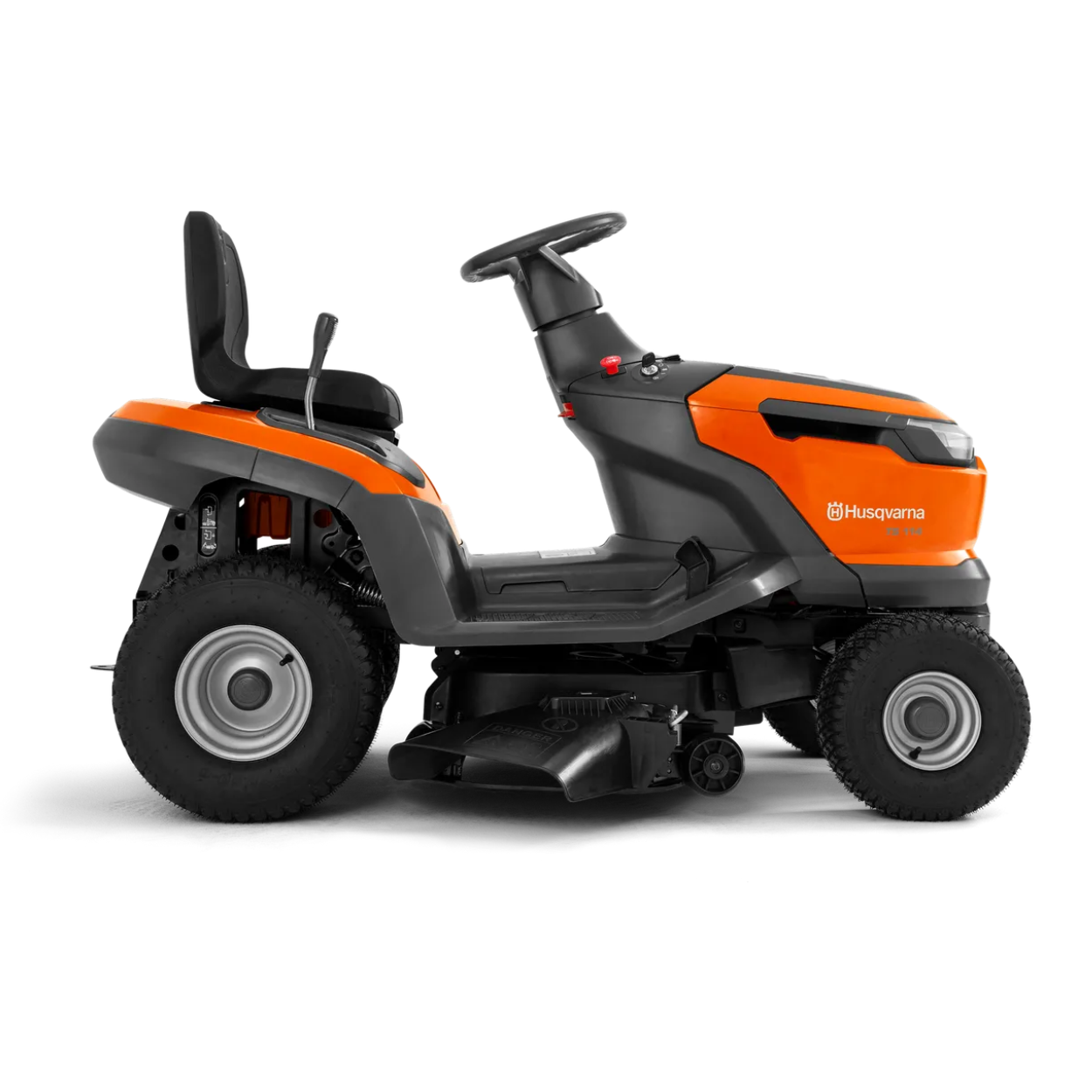

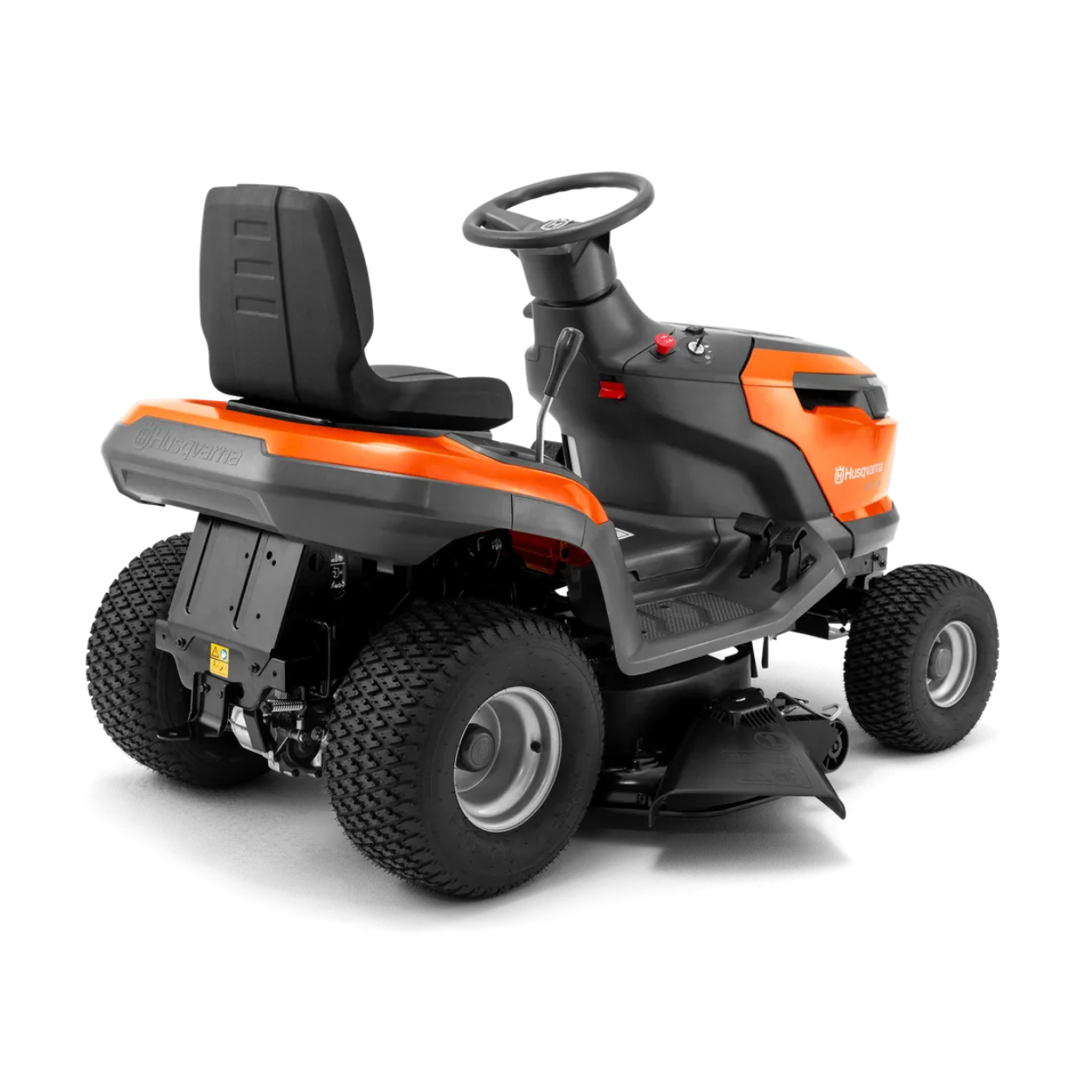

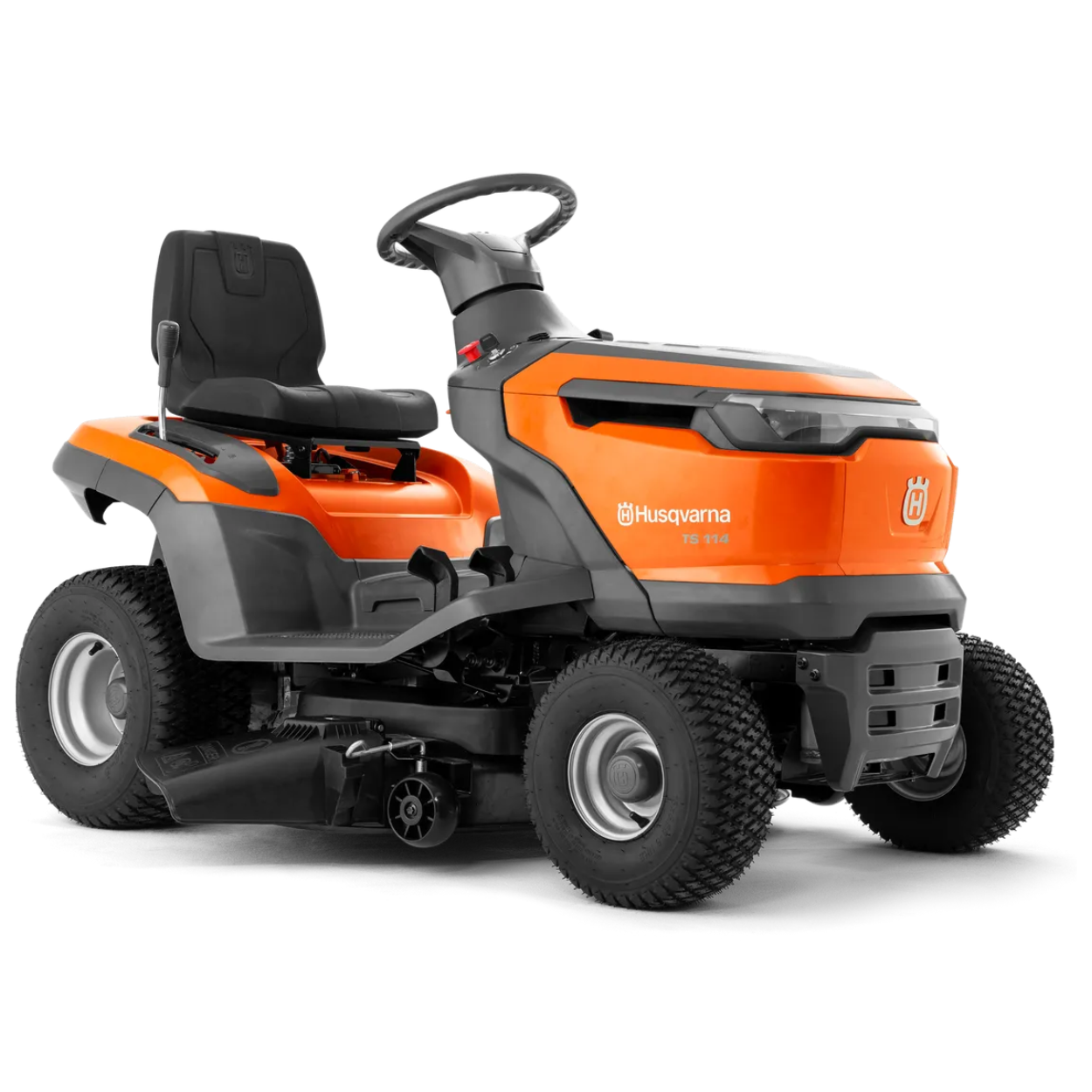

TS114 Lawn Tractor

Purposely engineered for ease of use, Husqvarna TS 114 garden tractor delivers an exceptional mowing experience on any large lawn – even in narrow passages. Achieve excellent results without straining your body thanks to its ergonomically placed levers, side-by-side pedals and spring-assisted cutting deck. Conveniently compact for optimised storage, maintenance and operation, enjoy trouble-free ownership and a perfectly cut lawn.

Cutting deck	TS114 Art no: 970 62 25‑01
Cutting width	95 cm
Cutting height max	100 mm
Cutting height min	25 mm
Nose roller	No
Anti-scalp wheels	2
Drive system
Drive method	Dual pedal-operation
Speed forward max	9 km/h
Speed reverse max	5 km/h
Engine
Cylinder displacement	452 cm³
Motor/engine manufacturer	Husqvarna
Engine name	HS 452AE
Engine Power (As rated by the engine manufacturer)1	14.8 hp
Engine Power (As rated by the engine manufacturer)2	11 kW
Cylinders	1
Generator	12 A
Power/fuel type	Petrol
Oil filter	Yes
Equipment
Seat material	PU
Front-End Protection	Available as accessory
Hour meter type	Digital
Seat back height	Medium
Steering wheel type	Ergonomic
Collector	Available as accessory
Transmission
Transmission type	Hydrostatic
Transmission manufacturer	Hydro-Gear
Sound and noise
Sound power level, guaranteed (LWA)	97.6 dB(A)
Sound pressure level at operators ear	83.4 dB(A)
Emission
Exhaust emissions (CO₂ EU V)3	754 g/kWh
